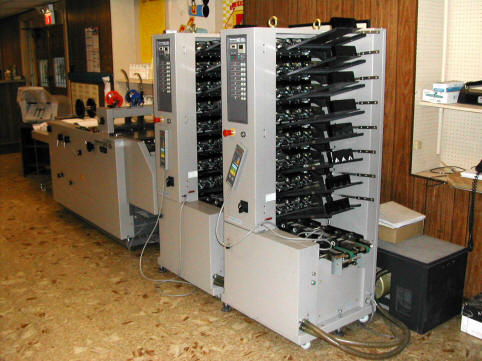

Standard MC-80 Collators, SPF-20 Booklet Maker, and FC10 II Trimmer



$28,000

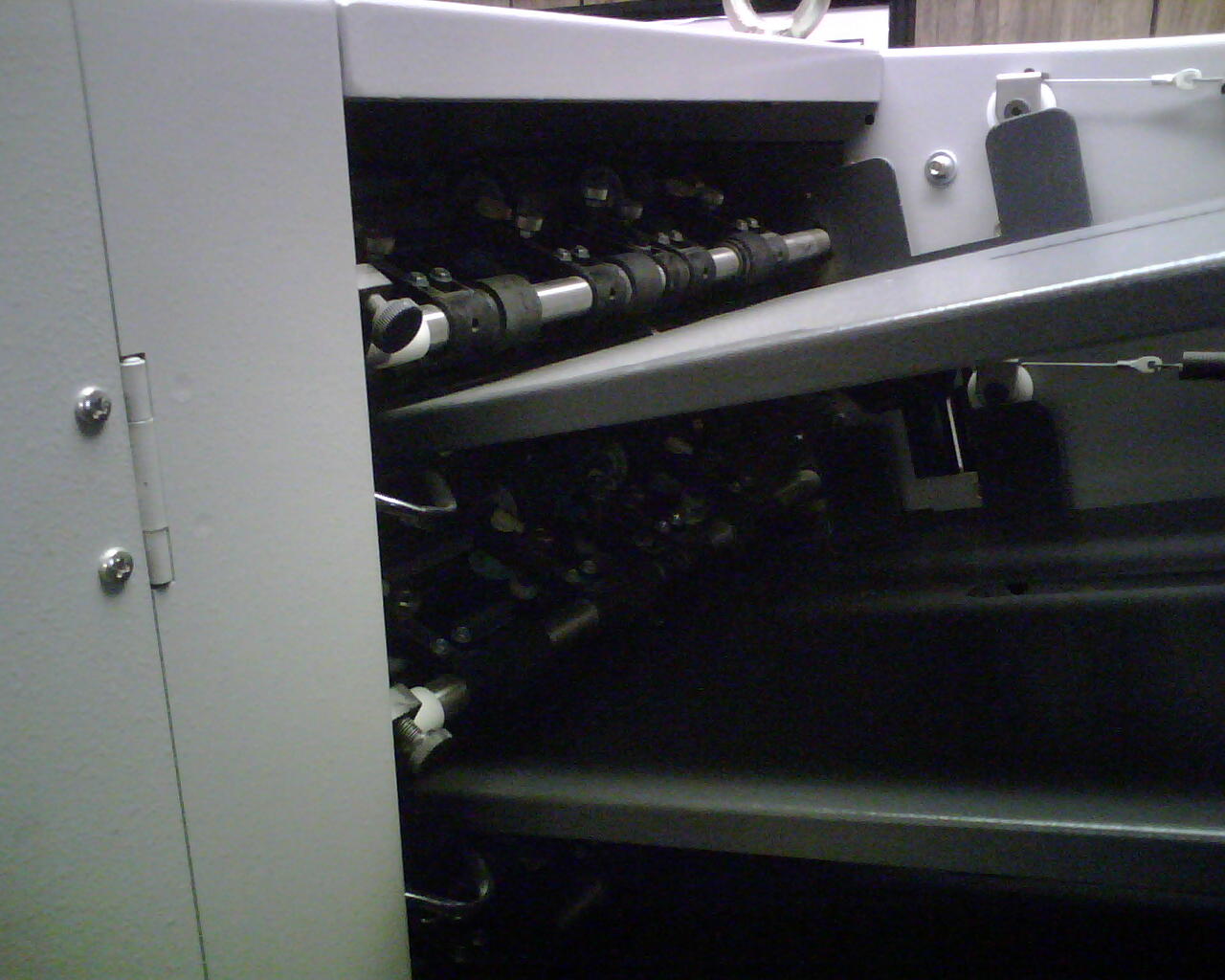

  • 2 MC-80 Collators Paper weight range 11lb. NCR to 12 pt. cover

  • Bin Pile Height 2

  • Sheet size for booklet making 8x8 to 12.5 x 18.5

  • Sheet size for Straight Stacking 5.8 x 8.3 to 12.5 x 18.5

  • Power Requirements 200- 230 V Ac 3 Phase

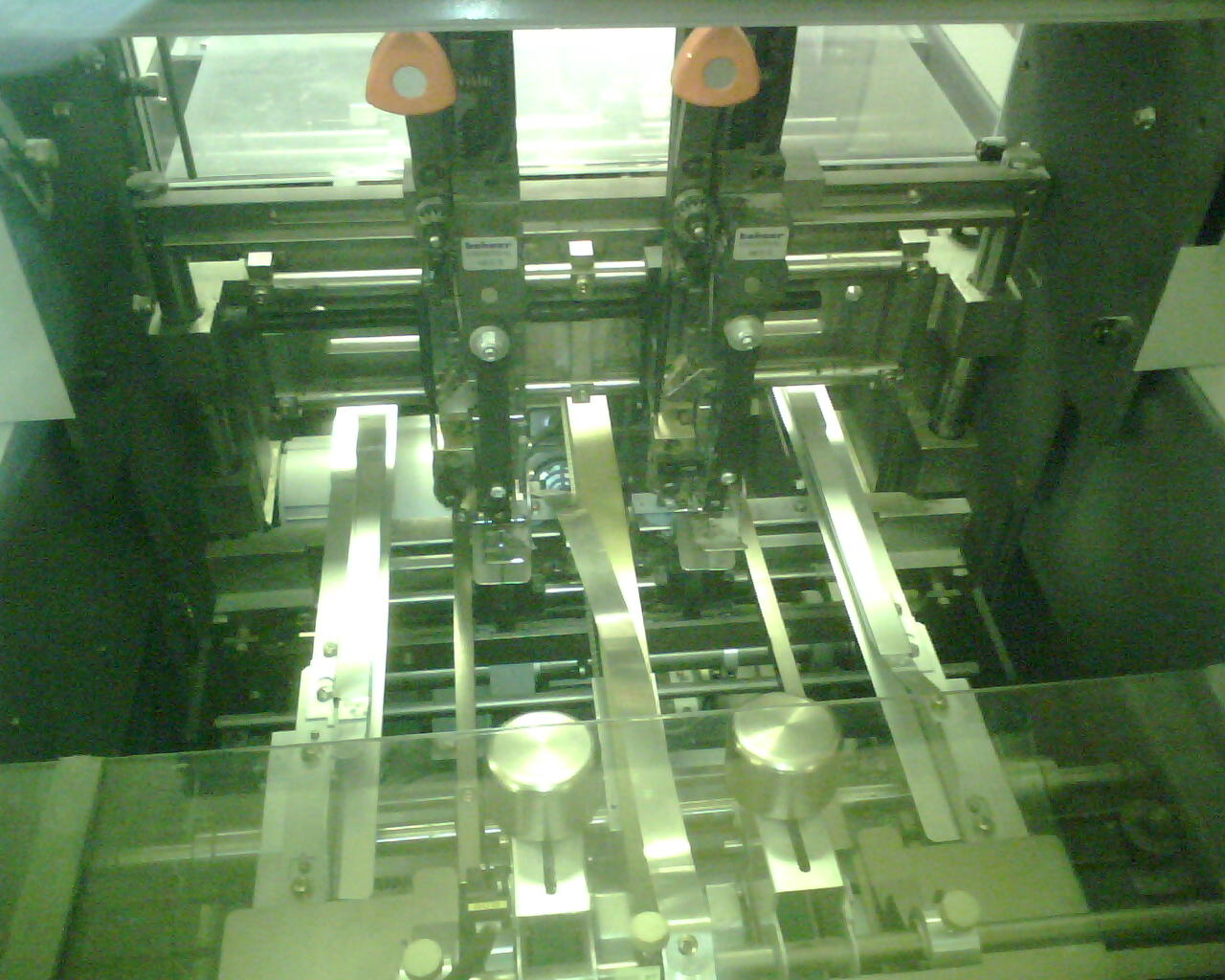

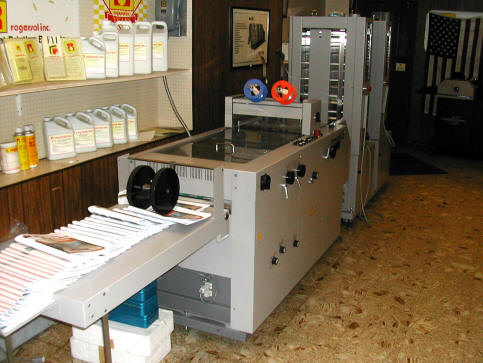

  • SPF-20 STITCHING & FOLDING SYSTEM

  • Application Corner/Side/Top Stitching Saddlestitching

  • Min./Max. Sheet Sizes 5 x 7 min. to 14 x 16.75 max. Maximum Thickness Up to .25 (Up to 3⁄8" with optional head) Up to 24 sheets of 50 lb. offset.

  • Production Speed* Up to 3,600 sets/hour.

  • Power Requirement/Consumption 220 V AC, 60 HZ,

  • Weight/Dimensions 1,034 lbs., 1,080 lbs.(SPF-20A) / 78" L x 29" W x 44" H.

  • Features variable speed; integrated hand-feed; two Hohner stitching heads; knife fold with dual set of fold rollers; stitch-head skew adjustment; adjustable fold plate; air-assist jogging; external adjustments on the fly.

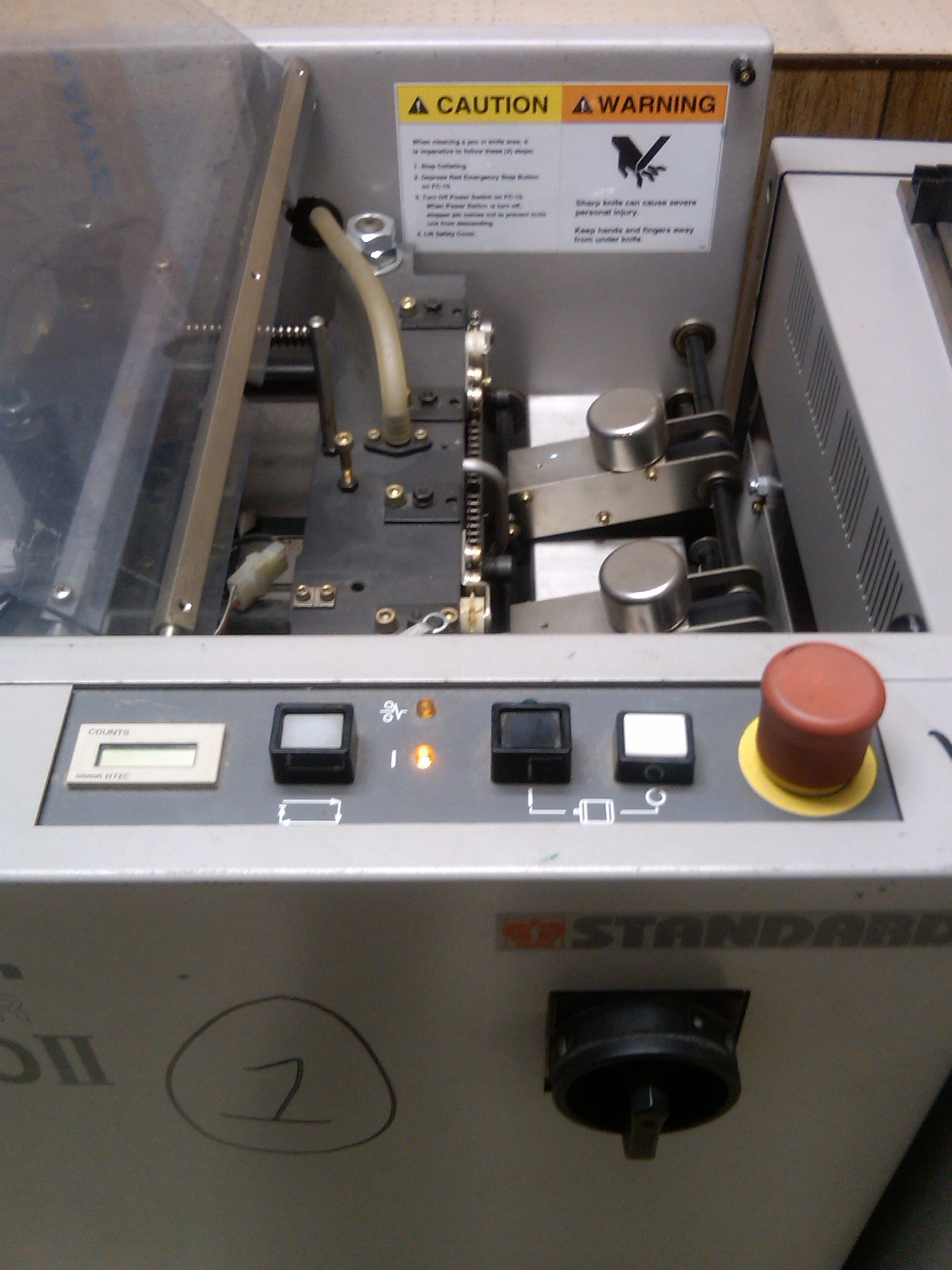

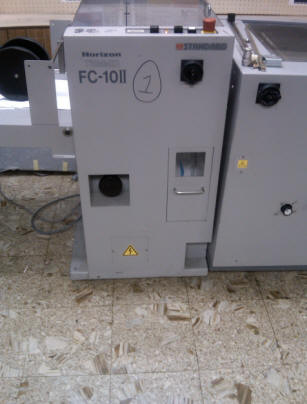

  • FC-10II Trimmer Shear-action self-sharpening system

  • Minimum and Maximum Sheet Size Min 3.9x 8 to Max 8.9 x 12.6

  • Trimming Margin .8

  • Cutting Thickness 48 sheets of 20lb bond

  • Production speed 2,700 sheets per hour

Used Standard Booklet Maker

Used Standard Booklet Maker
