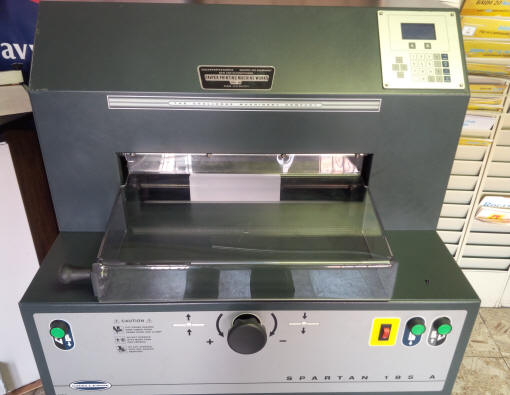

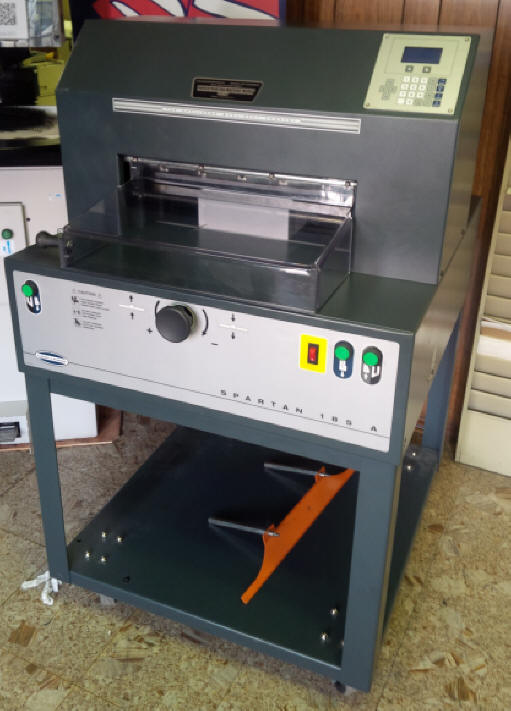

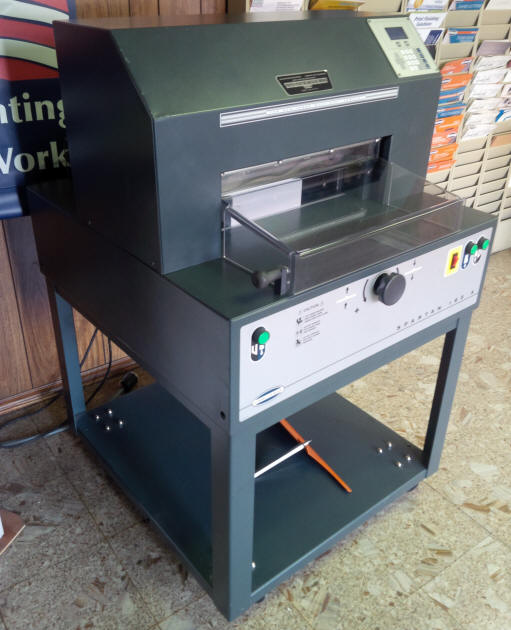

Challenge Spartan 185AEP

Sold


  • Maximum Cut Width: 18.5" (47 CM)
  • Maximum Cut Depth: 17.5" (44.5 CM)
  • Minimum Cut Depth: 1" (2.5 CM)
  • Clamp Opening: 3" (7.6 CM)
  • Electric Powered Clamping generates over 3,000 lbs. (1,360 kg) of clamping force
  • Electric Powered Backgauge - controlled by the control console or hand-wheel for micro adjustments

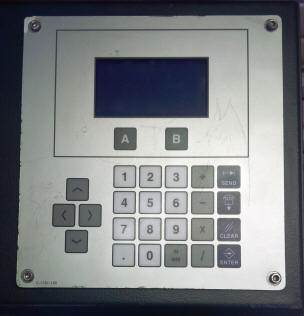

  • 3 Lighted LCD Display
  • Programmable operator friendly software uses soft key menu prompts for simple programming
  • Program Memory 20 programs, 20 cuts per program
  • Automatic Pushout Safety Feature backgauge automatically pushes stock out from under the clamping area before moving to a longer cut dimension
  • Electric Powered Cutting 1-1/2HP gear drive motor
  • Laser Red LED Cut Line Light - produces a bright easy to see cut line
  • Safe - two-hand push button controls and front and rear table safety shields
  • Auto-Releasing Front Safety Shield - automatically pops open after each cut cycle is completed. This unique benefit eliminates the need for the operator to manually lift the front shield in order to retrieve or adjust the stock after a cut providing increased productivity and operator ease-of-use
  • Heavy-Duty steel, cast iron, and cast aluminum construction gives the cutter "Challenge" durability
  • UHMW Gibs on front and back of knife bar require zero maintenance and have lifetime durability
  • Eliminates lubricant on knife bar that can spoil stock
  • Maintenance Free the LED cut-line light and UHMW Gibs result in the SPARTAN 185 being virtually maintenance-free with lifetime durability
  • Table in front of the knife: 13" (33 CM)
  • Cutter Dimensions: 32.25" (82 CM) Width x 41" (104 CM) Length x 52.75" (134 CM)
  • Approximate Weight: 700lbs. (318 KG)
  • 120 Volts, 60 HZ., 20 AMPs (Nema 5-20R receptacle type)
