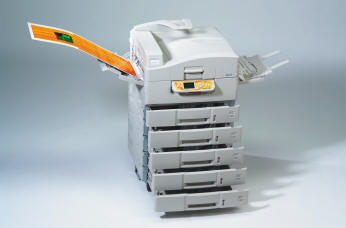

Xante Ilumina 502 Digital Press

Sold

Specifications:

Print Method: electrophotographic, single pass, large format color laserPrint Speed*: Color: up to 36 ppm Monochrome: up to 40 ppmWarm-up Time: up to 85 secondsFirst Page Output Time: Color: 10.5 seconds from an idle, ready state on plain paper Monochrome: 9 seconds from an idle, ready state on plain paperResolution: 1200 x 600 dpiRecommended Duty Cycle: 150,000 prints per month maximum (industry standard letter/A4 at 5%)

Hardware andSoftware Capabilities

Processor Type: PowerPC 750FX, 720 MHz

Memory: 768 MB standard

Internal Hard Disk: standard 20 GB

Operating System Compatibility:

Windows: Windows® XP Professional, XP Home, 2003 Server; Windows 98, 98 SE, ME, NT® 4.0 Workstation, NT 4.0 Server (SP6 or later), 2000 Workstation (SP3 or later), 2000 Professional (SP3 or later), 2000 Server (SP3 or later), 2000 Advanced Server (SP3 or later); Citrix® MetaFrame® – Windows 2000 Server (ServicePack4) with Citrix MetaFrame XP® Presentation Server Feature Release 3, Windows Server 2003 Standard Edition with Citrix MetaFrame XP Presentation Server Feature Release 3; Macintosh: Mac® OS 9.x, Mac OS 10.2.4 – 10.4.2; Unix/Linux

Printer Languages: Adobe PostScript 3, PDF v.1.4 Emulations: PCL®5c, PCL 6, IBM PPR, EPSON FXDirect PDF Printing (Windows environment only)

Printer Management: Printer Drivers, Color Correct Utility, Color Swatch Utility, PDF Direct Print, Profile Assistant, PS Gamma Adjuster, Storage Device Manager, Admin Manager/Quick Setup, LPR Utility, Job Accounting, Network Printer Status, Web Driver Installer

Color Support:

SWOP®, Euroscale, Japan Color and others

Interface Support

Standard:

10/100-TX Ethernet, High-speed USB v2.0, Parallel

Ethernet Protocols: TCP/IP, Netware and Ethertalk. TCP/IP includes ARP, IP, ICMP, TCP, UDP, LPR, FTP, TELNET, HTTP(IPP), BOOTP, DHCP, SNMP, DNS, SSL/ TLS, JetDirect protocols; Netware includes 3.x, 4.x, 5.x and 6.x with full NDS and NDPS support – PServer, RPrinter, NDPS supported via dedicated NDPS Gateway. EtherTalk: ELAP, AARP, DDP, AEP, NBP, ZIP, RTMP, ATP, PAP.

PaperHandling

Standard Paper Input:

760 sheets (530-sheet universal tray 1 + 230-sheet multi-purpose tray)

Optional Paper Input:

530-sheet universal tray 2 1,590-sheet High-capacity feeder (three 530- sheet universal trays 3, 4, and 5)

Standard Paper Output:

Face-down stacker: 500 sheets, 80 lb. cover / 216 gsm max.;

Face-up stacker: 250 sheets, 26 pt. cover / 502 gsm max.

Duplex Printing: automatic (standard)

Paper Sizes Supported: Tabloid extra (12" x 18"), tabloid, legal, legal 13", legal 13.5", letter, executive, index cards, A3, A3 wide (12.6" x 17.7"), A3 outsize (12.9" x 17.8"), A4, A5, A6, B4, B5, C5, DL, Com 10, Monarch envelopes, postcards, banners (up to 12.9" by 47.24"), and other custom paper sizes.

Paper Weights:

Multi-purpose: 75-502 gsm; 50 lb. text to 26 pt. cover

Trays 1-5: 75-216 gsm; 50 lb. text to 80 lb. cover

Duplexer: 75-120 gsm; 50 lb. text to 80 lb. text

Print Media: plain paper, letterhead, thick stock, glossy stock, transparencies, coated, uncoated, linen and card stocks; postcards, envelopes, sheet labels,

iron-on transfers, and magnetic stock

Physical

Type:

Laser printer with internal controller

Dimensions (WxDxH):

25.8" x 24.4" x 18.2" (65.5 cm x 62.0 cm x 46.2 cm)

Weight:

152 lb. (69.0 kg) without options

Electrical

Power Requirements:

120 (110 – 127) VAC; 60 Hz ± 2 Hz; 230 (220 – 240) VAC; 50 Hz, ±2 Hz

Power Consumption:

Operating: 750W

Standby: 200W

Power Save Mode: 55W

Environmental

Temperature Requirements:

Operating: 50-90° F (10-32° C)

Non-operating: 32-110° F (0-43° C)

Best Print Quality: 63-80° F (17-26° C)

Humidity:

Operating: 20-80% RH

Non-operating: 10-90% RH

Best Print Quality: 50-70% RH

Noise Levels:

Operating: 53 dB

Standby: 40 dB

Power Save Mode: 40 dB

Consumables

In-Box Cartridges: Printer ships with one each cyan, magenta, yellow and black toner cartridge; cyan, magenta, yellow and black image drum; waste toner box, fuser unit, and transfer belt

Typefaces

136 Adobe PostScript Type 1 typefaces, 86 scalable PCL fonts, 1 bitmap font, 10 TrueType® fonts, OCR A/B, USPS Barcode

* Print speed varies depending on system configuration, software application, driver, thickness of stock and document complexity.
