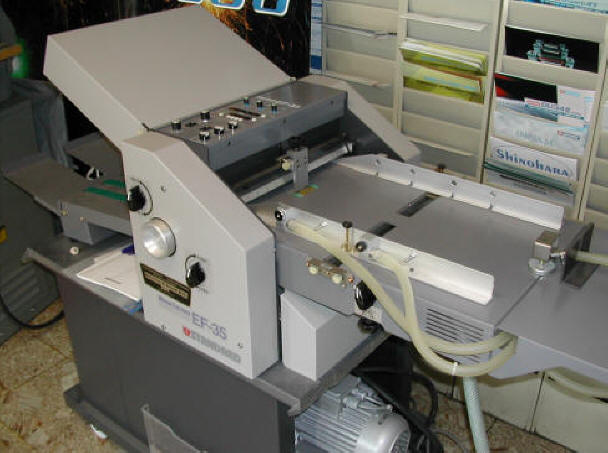

Standard EF-35 Folder
with Sound Shields for
Office Environment
|
|
- Folding Method: Buckle
(2-fold plate) Manually Adjusted
- Roller Composition:
Combination (1 steel, 2 rubber)
- Maximum Sheet Size:
13.7"W x 25.5"L
- Minimum Sheet Size: 2.2"W
x 2.8"L
- Maximum Fold Length:
13.7"
- Minimum Fold Length: 1.6"
- Sheet Weight Range:
Bond/Xerographic 12-65 lb., Cover 17-90 lb.
- Folding Speed: Variable
Speed Control Up to 30,000/hr (8½" x 11" single fold)
- Feed Tray Capacity: 1.6"
Pile Height, Continuous Top-load Bottom-feed (approx. 350 sheets, 20
lb. Xerographic)
- Standard Features: Base
Cabinet With Castors, Dual Dedicated Feed Pumps (Suction Pump and
Pressure Pump), Fold Plate Sound Enclosures, Digital Counter
Display, Batch Counter (Preset Stop/Pause Modes With Audible Alert),
Variable Speed Feed Control, Fine Feed- Adjustment Controls (Sheet
Gap/ Interval), Test Feed Button, Self Adjusting Fold Roller
Gapping, Variable Speed Output Conveyor (Continuous/Sheet Sensor
Activated Modes), Overlap and Jam Detection
- Power: 220V, 50/60 Hz,
16.8 Amp, Single Phase
- Dimensions: 52.4"L x
23.3"W x 43.2"H
- Innovative Feed System: A
dual-pump system and adaptable feed controls provide superior paper
feed control and performance. The vacuum and air pressure separation
systems operate independently with dedicated pumps. The operator can
select feed refinements on selected stocks by setting the feed-gap
and suction interval controls to increase productivity. A key result
of this superior feed system is the ability to confidently feed a
broad range of stocks, including statically charged sheets. The
EF-35 expands the range of precision paper feed control and delivers
high reliability on heavy-duty applications.
- Precision Folding: Using
a combination of rubber and steel folding rollers with a
self-compensating gap mechanism, the EF-35 creates a positive grip
control on each sheet producing exceptional fold consistency and
quality. Each of the two fold plates provides both coarse and micro
adjustment capabilities for the panel length and a skew control to
enable accurate folding of wavy and distorted sheets.

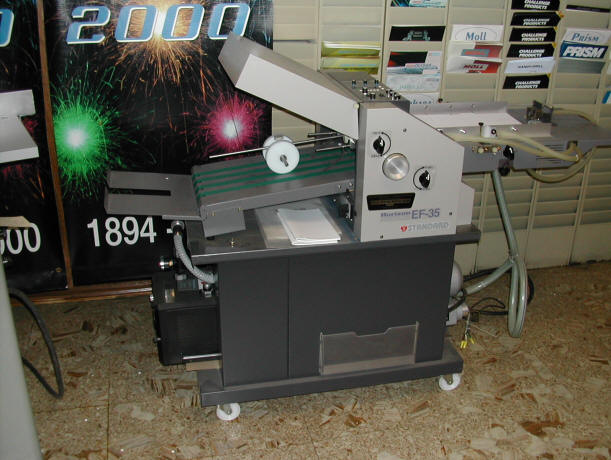

- Sound Reduction and Control:
Standard with the EF-35 is a heavy-duty castor-mounted stand and
sound enclosures for the fold plates. The two pumps are housed
within the stand for increased sound reduction and easy
repositioning of the EF-35.
- State of the Art Features:
A built in digital batch counter, jam detection and
adjustable speed controls for the paper feed and exit conveyor, add
to the versatility of the EF-35. The adjustable speed output
conveyor improves operator efficiency by preventing the nesting of
folded sheets. The variable speed feed control adds further feed
reliability and increases productivity on a wide variety of stocks.
- Operator Efficiency:
Maintain optimal productivity by selecting one of the operating
modes on the adjustable speed output conveyor to assure efficient
stacking.
- Quiet Operation: Sound
Enclosures on the EF-35 on the upper and lower fold plates are
standard features along with batch counting controls.
|
|
