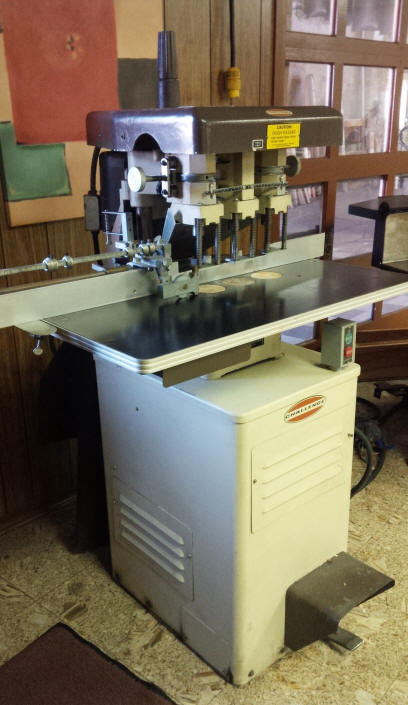

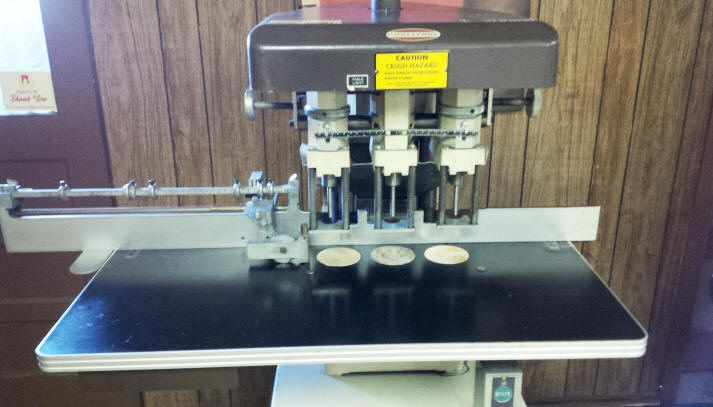

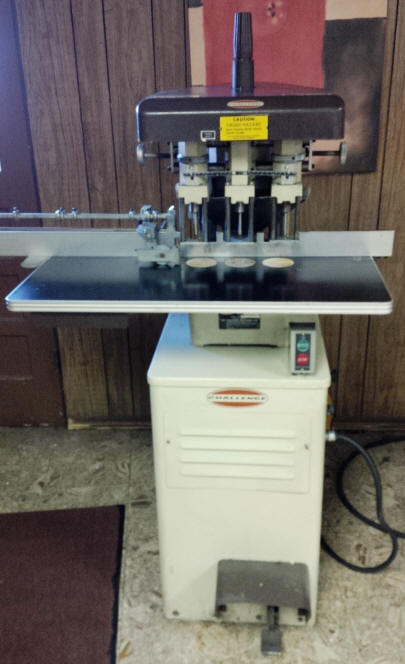

Challenge EH3A


  • Hydraulic Drill Motion

  • 3Drill Heads

  • Powerful Hydraulic Operation

  •  2-1/2" Drilling Capacity

  • Fast and Easy Head Adjustments

  • Flexible Backgauge Adjustments

  • Automatic Drill Return

  • Drill Sizes Available (2" capacity) 1/8" to 1/2" / 3 to 13 mm

  • Drill Sizes Available (2-1/2" capacity) 1/4" to 1/2" / 6 to 13 mm

  • Range Between Drills 2-3/4" to 4-1/2" / 7 - 11 cm

  • Range Between Outside Drills 5-1/2" to 9" / 14 - 23 cm

  • Maximum Drilling Capacity 2-1/2" / 63 mm

  • Strokes per Minute (adjustable) Up to 18

  • Backgauge Adjustment 0 to 4-1/2" / 0 to 11 cm

  •  Vertical Adjustment of Individual Heads 1/4" / 6 mm

  • 3 Sharp Drill Bits

  • 6 New Drill Blocks

  • 208 Volts 1 Phase
