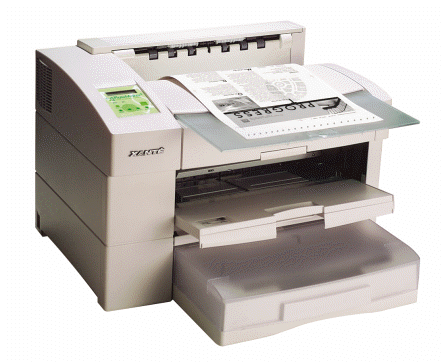

Platemaker 5
Call Today for More Information 314-535-0774
or Click Here to Order Now
PlateMaker 5 1200 x 1200 dpi, 128 MB RAM, 110 V or 220 V Auto Plate Loader 50 plate capacity Dimensions Width 22.8" (58 cm), Depth 23.68" (60.2 cm) with cassette, Height 16.24" (41.3 cm) Hard Drive Optional 2.5" (6 cm) internal IDE drive Imaging Speed Up to 120 plates per hour Imaging Unit Self Contained Proprietary Imaging Unit Life 7,000 sheets (letter; 5% coverage) Linescreen Up to 150 lpi Maximum Paper Size for Proofing 13" x 25" (330 mm x 635 mm) Maximum Plate Size 13.38" x 25" (340 mm x 635 mm) - requires 340mm Option Media Handling Letter; A3; A4; legal;
ledger; executive; Media Weights 16 to 28 lbs. (60 - 105 g/m2) cassette tray; 4 mil (0.1 mm) plates - Plate Auto Loader Memory 128 MB SODIMM, expandable to 256 MB. Noise Level Printing - less than 49.5 dB; Standby - less than 35 dB Optional Input Addition of a 500-sheet cassette. Two optional paper feeders may be installed for a maximum input of 1,650 sheets of paper. Paper Input 500-sheet cassette (standard) Plate Run Length >20,000 Impressions Power Requirements 100-127 V ~ 50/60 Hz, 6.5 A or 220 Volts Processor Fast IDT 79RC32355 Resolution 1200 dpi RIP Internal Adobe® PostScript® 3™ Screening Technology Z-Dot / Traditional screens Standard Interfaces Simultaneously active - 10/100 BaseT Ethernet (Ethertalk, TCP/IP, LPR, IPP) and Parallel Port Standard Output 500 sheets maximum, face down The 340mm Option For plates up to 340 mm (13.38") wide (standard 330 mm) Typefaces 136 resident PostScript Typefaces; TrueType® 42 font rasterizer; Types 1, 3, 4, 5 and 6 PostScript download font support PlateMaker 5 2400 x 2400 dpi, 256 MB RAM, 110 V or 220 V Auto Plate Loader 50 plate capacity Hard Drive Optional 2.5" (6 cm) internal IDE drive Imaging Speed Up to 120 plates per hour Imaging Unit Self Contained Proprietary Imaging Unit Life 7,000 sheets (letter; 5% coverage) Linescreen Up to 150 lpi Maximum Plate Size 13.38" x 25" (340 mm x 635 mm) - requires 340mm Option Maximum Plate Size for Proofing 13" x 25" (330 mm x 635 mm) Media Handling Letter; A3; A4; legal;
ledger; executive; Media Weights 16 to 28 lbs. (60 - 105 g/m2) cassette tray; 4 mil (0.1 mm) plates - Plate Auto Loader Memory 256 MB SODIMM, Noise Level Printing - less than 49.5 dB; Standby - less than 35 dB Optional Input Addition of a 500-sheet cassette. Two optional paper feeders may be installed for a maximum input of 1,650 sheets of paper. Paper Input 500-sheet cassette (standard) Plate Run Length >20,000 Impressions Power Requirements 100-127 V ~ 50/60 Hz, 6.5 A or 220 V Processor Fast IDT 79RC32355 Resolution 2400 dpi RIP Internal Adobe® PostScript® 3™ Screening Technology Z-Dot / Traditional screens Standard Interfaces Simultaneously active – 10/100BaseT Ethernet® (EtherTalk®, TCP/IP, LPR, IPP) and Parallel Port Standard Output 500 sheets maximum, face down The 340 mm Option For plates up to 340 mm (13.38") wide (standard 330 mm) Typefaces 136 resident PostScript Typefaces; TrueType® 42 font rasterizer; Types 1, 3, 4, 5, and 6 PostScript download font support |
|
